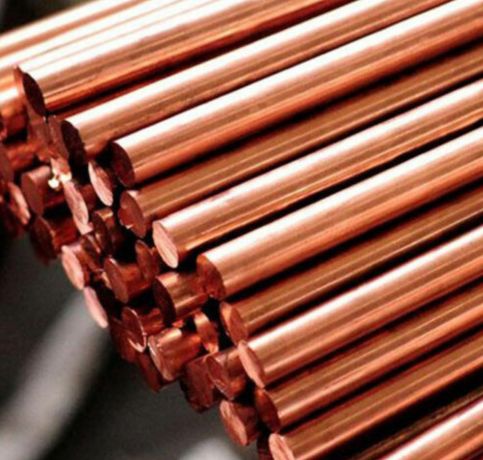

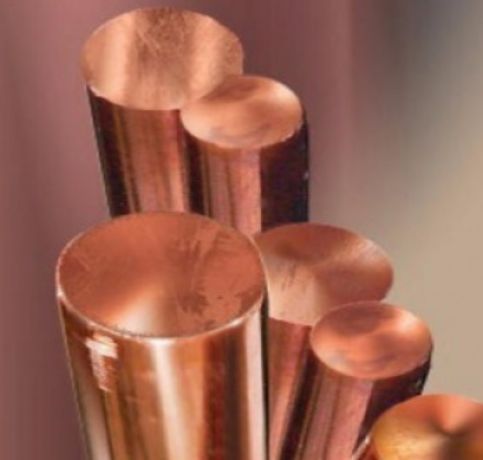

Aung Metals, located in Naypyidaw, Myanmar, has built a solid reputation as a manufacturer and supplier of top-notch Copper Bars and Rods. They’re well-known for their precision, durability, and adherence to international standards, providing copper products that are designed for dependable performance in electrical, industrial, and mechanical applications. Their Copper Bars and Rods are prized for their excellent conductivity, resistance to corrosion, and ease of machining, ensuring they deliver long-lasting efficiency and performance. Thanks to advanced manufacturing techniques, strict quality control, and prompt delivery, Aung Metals offers copper solutions that meet the rigorous demands of industries both in Myanmar and around the globe, providing reliability and exceptional value.
These Copper Bars and Rods are made from high-purity copper, usually 99.9% or higher, which guarantees outstanding electrical and thermal conductivity. They boast tensile strength between 210–250 MPa and yield strength around 70–120 MPa, with elongation rates of 30–50%. Their remarkable corrosion resistance, good ductility, and easy machinability make them a great choice. The combination of high conductivity and mechanical strength makes Copper Bars and Rods perfect for industrial applications that require both electrical efficiency and structural integrity.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Material | Copper |
| ETP GRADE | |
|---|---|

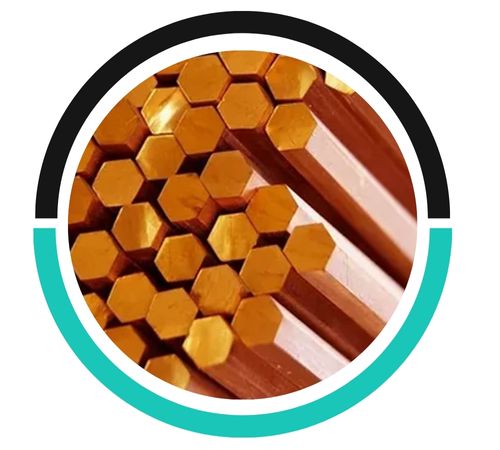

| Copper Hex Bar | ø 8 mm to 110 mm |
| Copper Round | ø 7 mm to 120 mm |

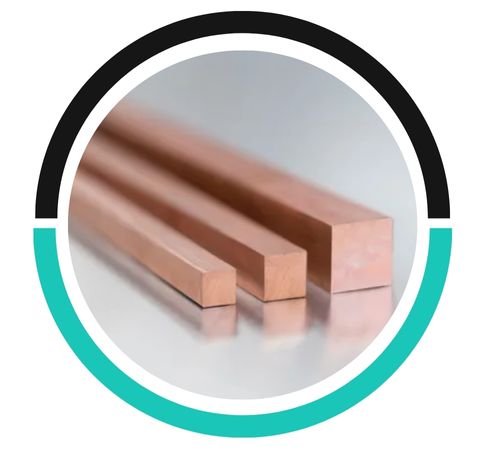

| Copper Square Bar | 10*10 mm to 90*90 mm |
| Electrical Conductivity: – (% IACS) | 98.5% min |
| Standards | BS EN 13601:2013, IS: 191, 1897 & 613 |
| Specifications | Cu : 99.90%, 02<400ppm |

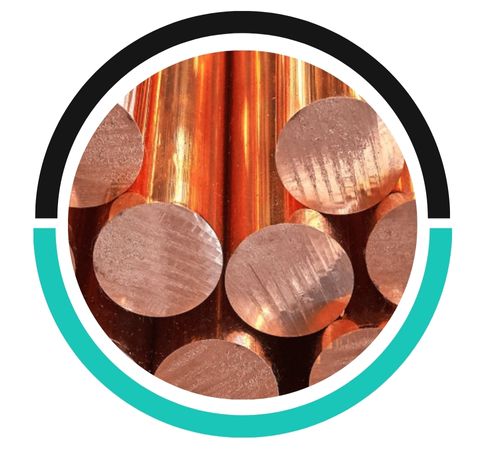

| Copper Round Rod C101 | |
|---|---|
| 6.3mm (1/4″) | 38.1mm (1 1/2″) |
| 9.5mm (3/8″) | 30mm |
| 12.7mm (1/2″) | 25.4mm (1″) |
| 12mm | 25mm |
| 10mm | 20mm |
| 16mm | 19mm (3/4 |
| Diameter in mm | Weight in Kg/m |
|---|---|
| 8 | 0,447 |
| 6 | 0,252 |
| 9,5 | 0,631 |
| 12 | 1,007 |
| 11 | 0,846 |
| 60 | 25,164 |
| 12,5 | 1,092 |
| 14 | 1,370 |
| 42 | 12,330 |
| 13 | 1,181 |
| 70 | 34,251 |
| 16 | 1,789 |
| 80 | 44,736 |
| 38 | 10,094 |
| 35 | 8,563 |
| 50 | 17,475 |
| 40 | 11,184 |
| 20 | 2,796 |
| 19 | 2,523 |
| 22 | 3,383 |
| 28 | 5,480 |
| 30 | 6,291 |
| 25 | 4,369 |
| 32 | 7,158 |
| 45 | 14,155 |
| Molecular Weight | 63.55 |
|---|---|
| Boiling Point | 2567 °C |
| Melting Point | 1083.4 °C |
| Density | 8.96 g/cm3 |
| Electrical Resistivity | 1.678 microhm-cm @ 20 °C |
| Appearance | Reddish Metal |
| Young’s Modulus | 110–128 GPa |
| Solubility in H2O | N/A |
| Heat of Fusion | 3.11 Cal/gm mole |
| Electronegativity | 1.9 Paulings |
| Poisson’s Ratio | 0.34 |
| Heat of Vaporization | 72.8 K-cal/gm atom at 2567 °C |
| Tensile Strength | N/A |
| Specific Heat | 0.092 Cal/g/K @ 25 °C |
| Thermal Expansion | (25 °C) 16.5 µm·m-1·K-1 |
| Thermal Conductivity | 4.01 W/cm/K @ 298.2 K |
| Vickers Hardness | 369 MPa |
Yes, Copper Bars and Rods can be susceptible to galvanic corrosion when in contact with dissimilar metals, particularly in the presence of moisture or electrolytes. Proper insulation helps prevent this.
Yes, Copper Bars and Rods are fully recyclable. The material retains its properties after recycling, making it an eco-friendly choice for sustainable industrial applications and reducing environmental impact.
Yes, Copper Bars and Rods can be used for natural gas applications. They offer excellent corrosion resistance and conductivity, making them suitable for gas systems, provided they are properly maintained.
You’ll find Copper Bars and Rods used across various sectors, including electrical, electronics, construction, and industry. They’re perfect for creating busbars, electrical connectors, terminals, grounding systems, and switchgear components. Plus, they’re utilized in plumbing, heat exchangers, and mechanical parts that need excellent corrosion resistance and thermal conductivity. Their high ductility and conductivity also make them ideal for wiring, renewable energy systems, and components in industrial machinery. With their blend of reliability, durability, and superior conductivity, Copper Bars and Rods are truly essential materials in both industrial and electrical engineering fields.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
