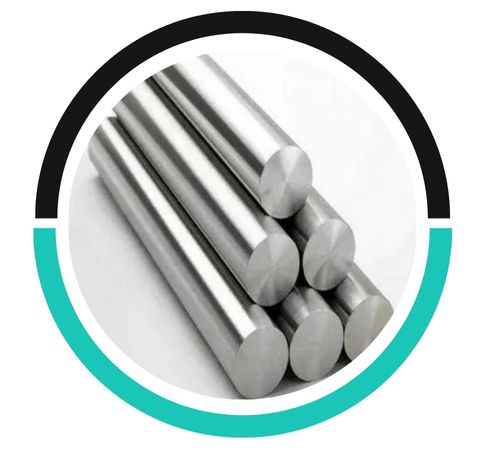

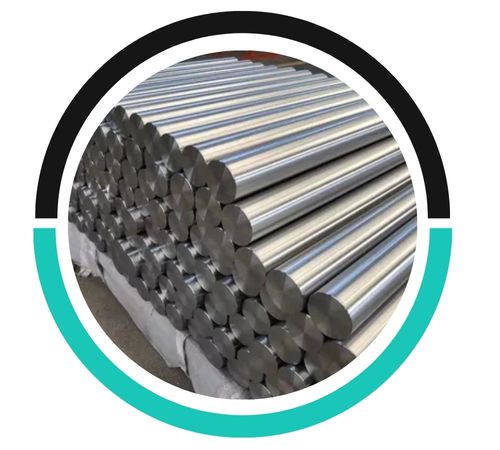

Aung Metals, a reputable manufacturer and supplier located in Naypyidaw, Myanmar, specializes in producing top-notch Hastelloy N Bars and Rods. These products are expertly crafted to offer outstanding corrosion resistance and mechanical strength, even in the most challenging chemical environments. Designed to withstand stress-corrosion cracking, pitting, and oxidation in both reducing and oxidizing conditions, they are perfect for applications in chemical processing, marine, and aerospace industries. Aung Metals prides itself on precision manufacturing, ensuring excellent dimensional accuracy and adherence to international standards, which results in Hastelloy N Bars and Rods that deliver reliable performance, durability, and a long service life in demanding industrial settings.
The composition of Hastelloy N Bars and Rods primarily includes nickel, molybdenum, and iron, along with trace amounts of chromium, cobalt, and manganese. This unique blend provides them with remarkable resistance to chloride-induced corrosion, as well as to both oxidizing and reducing chemicals, even in high-temperature situations. On the mechanical side, they boast a tensile strength of about 690 MPa and a yield strength of around 275 MPa, coupled with excellent ductility, toughness, and creep resistance. The careful balance of alloys ensures stability and consistent performance, even under extreme operating conditions.
| Standards : | ASTM B573, ASME SB573 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

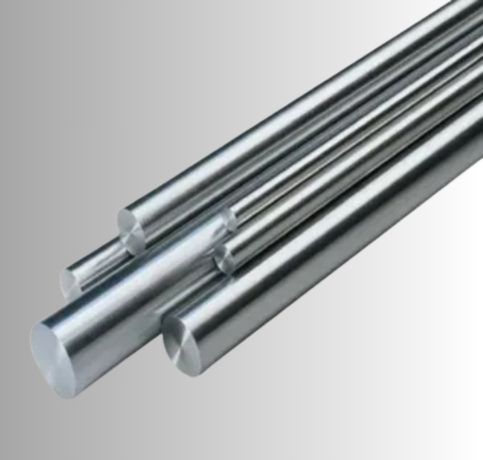

| Round bar size : | Diameter: 3-~800mm |

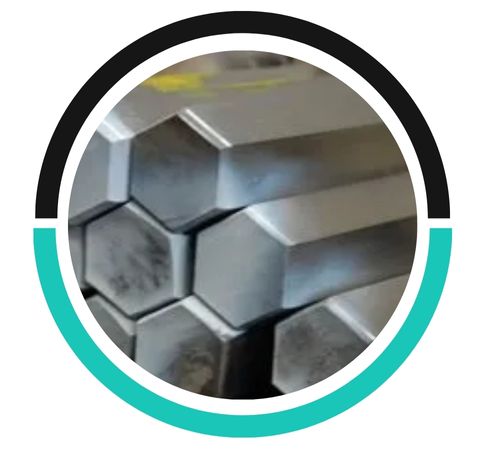

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

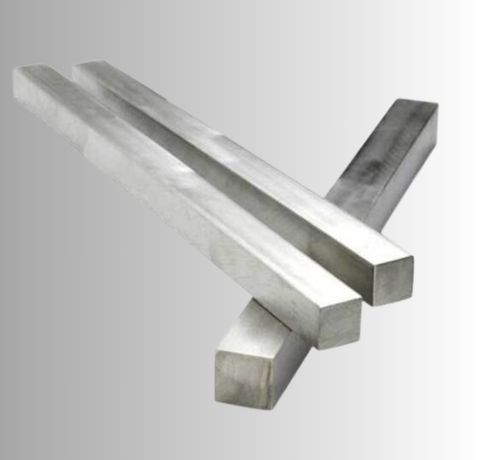

| Square bar size : | 4 to 100mm |

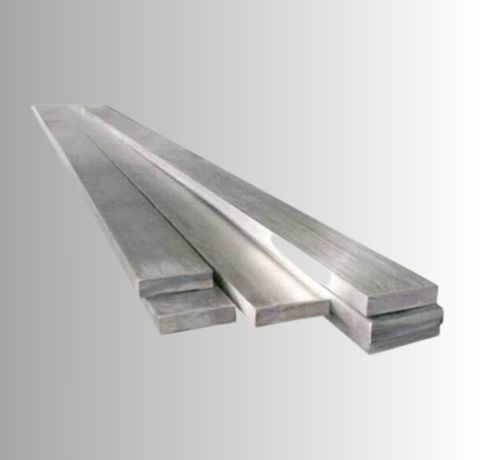

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | Cu | Ni | Cr | Mo | W | Fe |
| Hastelloy N | 0.06 max | 0.8 max | 1.00 max | ≤ 0.35 | 71 Balance | 6.0 – 8.0 | 15.0 – 18.0 | ≤ 0.50 | ≤ 5 |
| Tensile Strength | Modulus of elasticity (@14°C) | Elongation |
| Psi – 800 , MPa –116000 | Psi – 219 , Ksi – 31800 | 39.3 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy N | – | N10003 |
Yes, Hastelloy N rods can be welded using standard welding techniques, including TIG and MIG welding. Preheat and post-weld heat treatment may be required for optimal results.
Hastelloy N rods are available in various sizes, typically ranging from 1/8" to 3" in diameter. They come with finishes such as cold drawn, bright annealed, or polished, depending on the application.
Hastelloy N bars offer exceptional corrosion resistance, particularly in high-temperature environments. They also exhibit excellent strength, thermal stability, and resistance to oxidation and carburization.
Hastelloy N Bars and Rods find their place in various industries that demand materials capable of enduring harsh chemical and thermal environments. They are particularly well-suited for manufacturing reactors, piping systems, heat exchangers, pumps, valves, and chemical processing equipment. Additionally, these bars and rods are utilized in pollution control systems, marine hardware, and aerospace components, where resistance to strong acids and chlorides is essential. With their excellent weldability, machinability, and long-lasting durability, Hastelloy N Bars and Rods stand out as a dependable choice for high-performance industrial and engineering applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aung Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Naypyidaw, Myanmar
