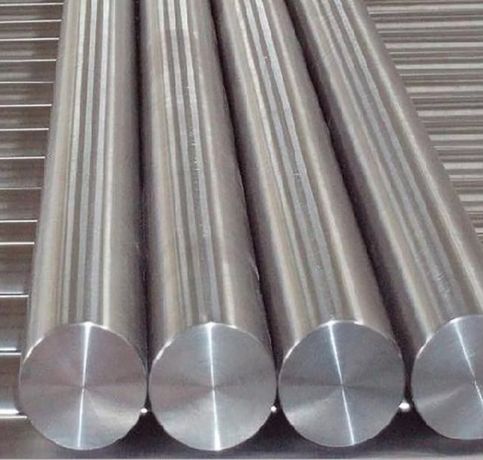

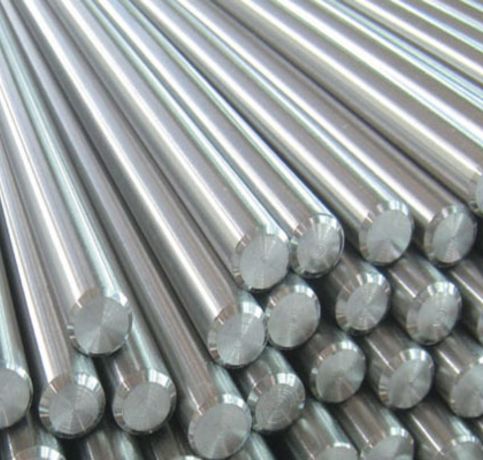

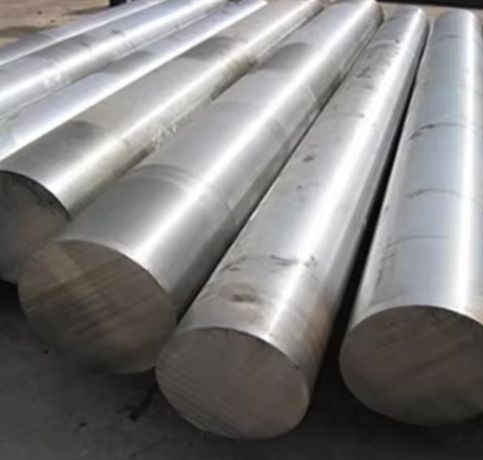

Aung Metals, a well-respected manufacturer and supplier located in Naypyidaw, Myanmar, specializes in high-quality Hastelloy Round Bars that are engineered to excel in extremely corrosive and high-temperature settings. These bars are celebrated for their remarkable resistance to oxidation, pitting, and stress-corrosion cracking, making them perfect for industries like chemical processing, marine applications, and aerospace. Aung Metals is committed to precision in manufacturing, ensuring dimensional accuracy and adherence to international standards, which results in Hastelloy Round Bars that boast exceptional strength, durability, and reliability for critical applications that demand both mechanical stability and corrosion resistance.
The composition of Hastelloy Round Bars primarily includes nickel, molybdenum, and chromium, along with trace amounts of iron, tungsten, cobalt, and manganese. This unique blend offers outstanding resistance to both strong oxidizing and reducing agents, as well as remarkable stability under thermal and mechanical stress. In terms of mechanical properties, these bars provide a tensile strength of around 690 MPa and a yield strength of approximately 283 MPa, along with impressive ductility and toughness. Their distinctive alloy composition guarantees long-lasting performance even in the harshest and most corrosive industrial environments.
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | 1.0 max | Bal | 1.0 max | 2.0 max | 26 – 30 | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| Hastelloy B2 | 9.2 g/cm3 | 1370 °C (2500 ºF ) | Psi – 1,10,000 , MPa – 760 | Psi – 51000 , MPa – 350 | 40 % |
| STANDARD | UNS | WNR. | JIS | GOST | EN | OR |
|---|---|---|---|---|---|---|
| Hastelloy C276 | N10276 | 2.4819 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
| Hastelloy C22 | N06022 | 2.4602 | NW 6022 | – | NiCr21Mo14W | – |
| Hastelloy B2 | N10665 | 2.4617 | – | – | – | – |
| Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| 7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
| 8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
| 9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
| 10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
| 11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
| 12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
| 13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
| 14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
| 15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
| 16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
| 17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
| 18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
Hastelloy round bars can undergo specific heat treatments, such as annealing, to enhance their mechanical properties and relieve stress. However, the exact process depends on the alloy grade and intended application.
Ensure the quality of Hastelloy Round Bars by sourcing them from reputable suppliers who adhere to industry standards like ASTM or ASME, and verify certifications like Mill Test Reports (MTR). Additionally, perform non-destructive testing (NDT) and inspect for dimensional accuracy and surface finish.
Yes, we provide Hastelloy Round Bars in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@aungmetals.com
Hastelloy Round Bars find extensive use in industries that deal with aggressive chemicals and extreme conditions. They are particularly well-suited for creating components in chemical processing plants, heat exchangers, marine equipment, pollution control systems, and flue gas scrubbers. Their exceptional resistance to acids like hydrochloric, sulfuric, and phosphoric makes them ideal for reactors, pressure vessels, and evaporators. Furthermore, Hastelloy Round Bars are also utilized in the aerospace, pharmaceuticals, and power generation sectors. Their ability to maintain strength and resist corrosion under high stress ensures dependable and long-lasting performance in demanding applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
