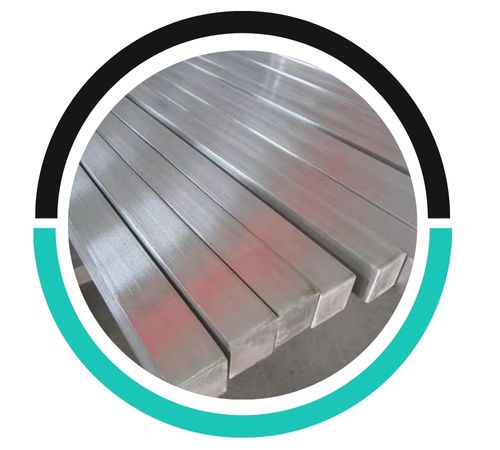

Aung Metals, a prominent manufacturer and supplier located in Naypyidaw, Myanmar, focuses on producing top-notch **Inconel Square Bars** that are perfect for tough industrial and high-temperature settings. These square bars are celebrated for their remarkable strength, resistance to corrosion, and thermal stability, making them reliable performers even in the harshest environments while ensuring precise dimensions. Aung Metals utilizes cutting-edge manufacturing techniques and rigorous quality control measures to guarantee consistent mechanical performance and long-lasting durability. Catering to industries like aerospace, chemical processing, petrochemical, and power generation, the company offers Inconel square bars that excel in performance, operational efficiency, and reliability for critical applications that demand high-temperature and corrosion resistance.
**Inconel Square Bars** are mainly made up of nickel and chromium, with other alloying elements like iron, molybdenum, and cobalt added based on the specific grade. This unique composition grants them excellent resistance to oxidation, corrosion, and thermal degradation at high temperatures. On the mechanical side, Inconel square bars showcase impressive tensile and yield strength, exceptional creep resistance, and outstanding fatigue performance. These characteristics make them ideal for applications that require durability, dimensional stability, and dependable performance under extreme heat, stress, and corrosive conditions.
| Standard | ASME, ASTM, GB, API, DIN, AISI, SUS, EN, UNS |
|---|---|
| Inconel Square Size | 33 x 30mm to 295 x 1066mm |
| Square Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Inconel Square Bar Finish | centreless ground, Cold (bright) drawn, smooth turned, hot rolled, slit rolled edge, peeled, Rough Turned, hot rolled annealed, Polish, Bright, Centreless Ground & Black, Grinding |
| Inconel Square Bar Tolerance | H9, H8, H11, H10, H13K9, H12, K11, K10, K12 or as per clients’ requirements |
| Alloy Square bar Condition | Hardened & tempered, annealed |
| Alloy Square Bar Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Inconel Square Bars Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Alloy Cold Drawn and Polish Square Bars | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Alloy Cold Drawn and Ground Square Bars | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished Square Bars | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Inconel Peeled and Square Bars | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
| Ni | Cr | Fe | Mo | Nb+Ta | C | Mn | Si | Ph | S | Al | Ti | Co | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | Bal | 20 | – | 8 | 3.15 | – | – | – | – | – | – | – | – |
| Max | – | 23 | 5 | 10 | 4.15 | 0.10 | 0.50 | 0.50 | 0.015 | 0.015 | 0.40 | 0.40 | 1.0 |
| 0.2% Proof Stress | Tensile Strength | Elongation | Reduction of area | Hardness |
|---|---|---|---|---|
| MPA | MPA | % | % | HRB |
| Min | Min | Min | Min | Min |
| 414 | 827 | 30 | 40 | 145 |
Inconel Square Bar is widely used in industries such as aerospace, chemical processing, power generation, and marine. It is ideal for components exposed to high temperatures and corrosive environments, including turbines, heat exchangers, and exhaust systems.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@aungmetals.com
**Inconel Square Bars** find extensive use in industries that need materials with high strength, corrosion resistance, and heat tolerance. They’re often used in aerospace components, turbine shafts, and high-temperature structural elements. In the chemical and petrochemical sectors, they play a crucial role in reactor vessels, heat exchangers, piping systems, and valves that face harsh environments. Their superior mechanical strength, thermal stability, and resistance to oxidation make them perfect for power generation, marine applications, and high-performance industrial uses. Inconel square bars offer longevity and reliability, ensuring they meet the demands of challenging conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
