Aung Metals is a reliable manufacturer and supplier located in Naypyidaw, Myanmar, with a focus on producing top-notch Titanium Grade 1 Bars and Rods. Known for their precision in manufacturing and commitment to international standards, Aung Metals offers Titanium Grade 1 products that blend strength, corrosion resistance, and lightweight performance. These bars and rods are perfect for industries that require dependable materials in tough conditions. With a strong emphasis on quality assurance and customer satisfaction, Aung Metals caters to various sectors, including aerospace, marine, chemical, and medical fields, providing products that guarantee durability and operational efficiency.
Titanium Grade 1 Bars and Rods are primarily made of titanium (at least 99.5%) and contain minimal amounts of oxygen, nitrogen, carbon, hydrogen, and iron. This commercially pure grade is celebrated for its excellent ductility, formability, and remarkable corrosion resistance. It boasts a tensile strength of around 240 MPa, a yield strength of about 170 MPa, and an elongation of roughly 24%. Titanium Grade 1 is recognized for its impressive toughness, weldability, and resistance to seawater, oxidizing agents, and a variety of chemical environments.
| Standards : | ASTM B348, B863 / ASME SB 348, SB 863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

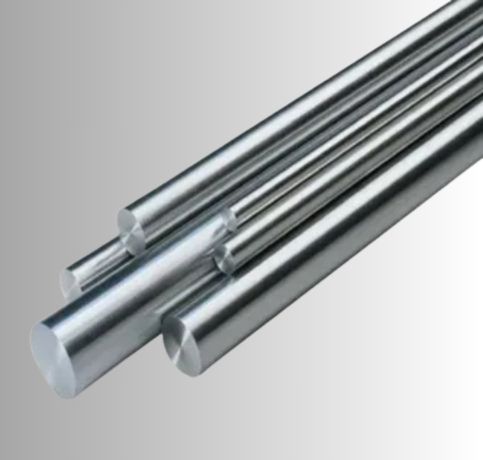

| Round bar size : | Diameter: 3-~800mm |

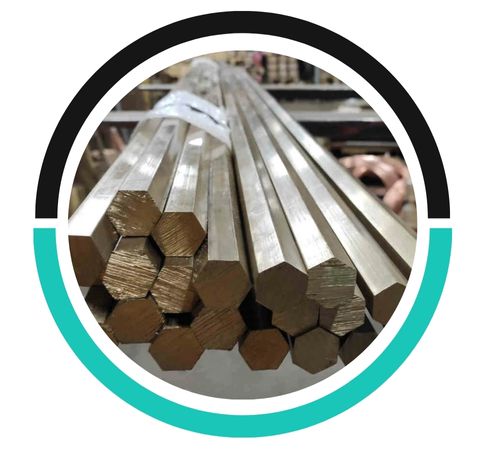

| Hex Bar size : | 2-100mm A/F |

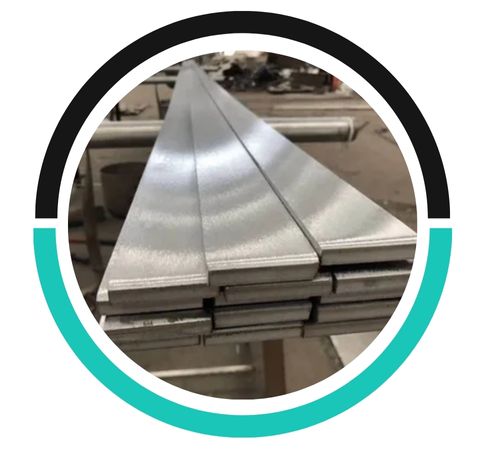

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

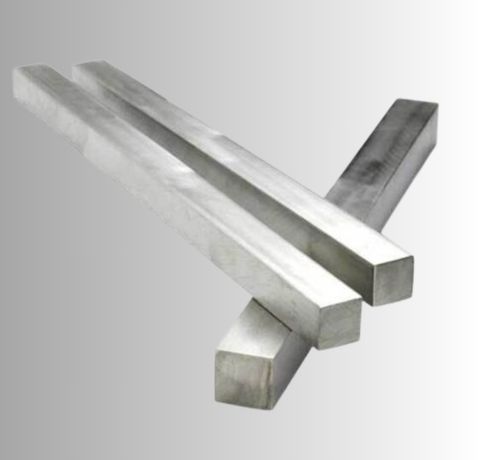

| Square bar size : | 4 to 100mm |

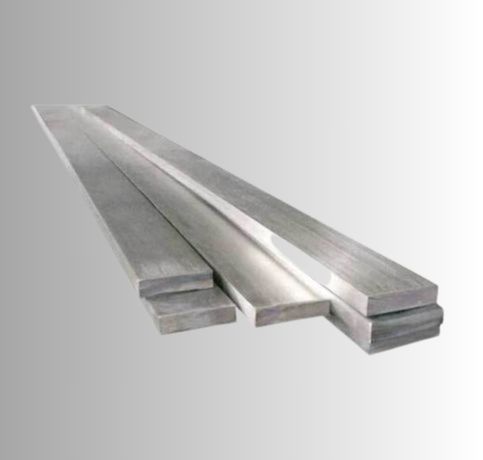

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 1 | 3.7025 | R50250 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | 0.08 max | 0.03 max | 0.18 max | 0.015 max | Bal | 0.20 20 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 240 | 170 | 24 % |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51Â g/cc | 0.163Â lb/inÂł |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |

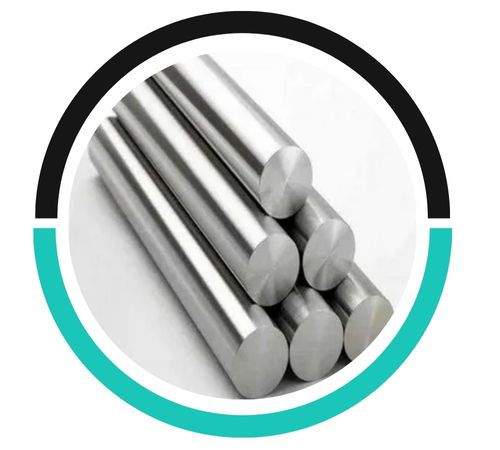

| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 1 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@aungmetals.com
These Titanium Grade 1 Bars and Rods find extensive use in applications that demand high corrosion resistance and low weight. They’re commonly found in heat exchangers, condenser tubing, chemical processing equipment, and marine hardware due to their outstanding resistance to chlorides and seawater. In the medical sector, they’re used for surgical instruments and implants because of their biocompatibility. The aerospace and automotive industries also utilize them for lightweight structural components, while power generation and desalination plants rely on them for their durability and ability to withstand harsh environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
