Aung Metals is a well-respected manufacturer and supplier located in Naypyidaw, Myanmar, specializing in high-performance **Titanium Grade 12 Bars and Rods** that adhere to international quality standards. Renowned for their precision engineering and durability, Aung Metals provides products tailored for the toughest industrial settings. The Titanium Grade 12 Bars and Rods offer a remarkable blend of strength, corrosion resistance, and weldability, making them perfect for critical applications. With a strong commitment to quality assurance, innovation, and timely delivery, Aung Metals caters to a variety of sectors, including chemical processing, marine, power generation, and aerospace, delivering reliable and long-lasting titanium solutions.
**Titanium Grade 12 Bars and Rods** are primarily made of titanium, with small amounts of molybdenum (0.2–0.4%) and nickel (0.6–0.9%) added to boost corrosion resistance and strength. This alloy boasts a tensile strength of around 485 MPa, a yield strength of about 380 MPa, and an elongation of roughly 18%. It offers excellent formability and weldability, along with high resistance to crevice corrosion and reducing acids like sulfuric acid. Additionally, Titanium Grade 12 maintains impressive mechanical properties and oxidation resistance even at elevated temperatures.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

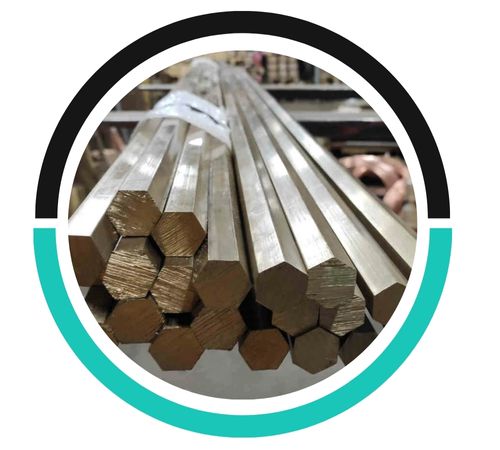

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 12 | 3.7105 | R53400 |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
| Titanium Gr 9 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade 12 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Density | Melting Range | Modulus of Elasticity (Tension) | Specific Heat | Mean Coefficient of Expansion | Thermal conductivity | Electrical Resistivity |
| kg/m3 | °C | GPa | J/kg. °C | x10 -6 / °C | W / m. °C | micro-ohm.m |
| 4,507 | 1668± 10 | 103 | 519 | 8.41 | 11.4 | 0.420 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Grade 12 Titanium Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Titanium Grade 12 offers excellent resistance to corrosion, especially in oxidizing and mildly reducing environments, and is highly durable in seawater and chemical processing conditions.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@aungmetals.com
Yes, Titanium Grade 12 exhibits remarkable high-temperature resistance, making it suitable for use in power generation and industrial processes that involve elevated temperatures.
**Titanium Grade 12 Bars and Rods** are extensively utilized in industries that demand exceptional corrosion resistance and strength-to-weight efficiency. They are perfect for chemical process equipment, heat exchangers, condensers, and marine hardware that face saltwater and harsh chemicals. The alloy’s superior resistance to erosion and corrosion makes it an excellent choice for desalination plants and offshore oil and gas systems. In the aerospace and automotive sectors, Titanium Grade 12 is favored for lightweight structural components, while in power generation, it finds applications in tubing, pressure vessels, and heat recovery systems.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aung Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Naypyidaw, Myanmar
