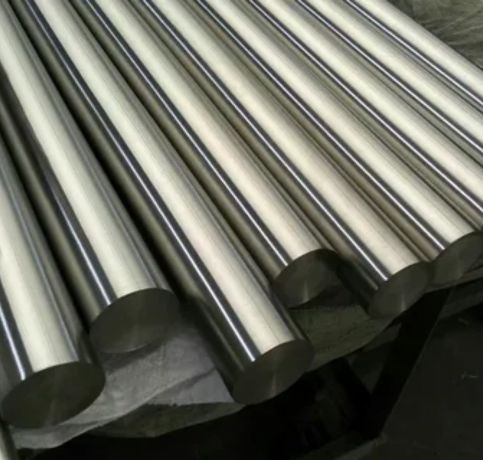

Aung Metals, located in Naypyidaw, Myanmar, is a reliable manufacturer and supplier of Stainless Steel Bright Bars and Rods, providing precision-engineered products for a variety of industrial sectors. Our bright bars and rods are celebrated for their exceptional surface finish, precise dimensions, and robust strength, all thanks to advanced technology and high-quality stainless steel. At Aung Metals, we prioritize strict quality control and compliance with international standards, ensuring our products are perfect for critical applications. With a commitment to durability, corrosion resistance, and top-notch performance, we cater to industries like construction, automotive, machinery, and engineering with our dependable Stainless Steel Bright Bars and Rods.
Stainless Steel Bright Bars and Rods are mainly made up of iron, chromium (10–20%), nickel, along with trace amounts of carbon, manganese, and silicon. This unique blend boosts their corrosion resistance, tensile strength, and shiny surface. These materials showcase a tensile strength ranging from 500–750 MPa, along with impressive hardness and high toughness, making them perfect for machining and structural applications. The sleek, polished finish not only enhances their appearance but also minimizes friction. These bars and rods maintain their mechanical stability in various temperatures and environments, ensuring a long service life and reliable performance across different industrial uses.
Standards : ASTM A276, ASTM A484, AISI
Grade : 201, 202, 301, 302, 303, 304, 304H, 304L, 316, 316H, 316L, 309, 309S, 310, 310S, 316Ti, 317, 317L, 347, 321, 321H, 410, 416, 420, 430, 430F, 431, 440C, 630, 17-4PH, F51
Range : from2.00mm to 6.35mm (0.078″ to 0.25″)dia.
Tolerance : DIN 671, ASTM A484 & as per customer’s specific requirement.
Finish : Cold drawn, Centreless Ground, Polished
| Grade | Su | C | Si | P | Cr | Ni | M | Mo | Other |
|---|---|---|---|---|---|---|---|---|---|
| 316 | 0.030 max | 0.08 max | 0.75 max | 0.045 max | 16.0-18.0 | 10.0 14.0 | 2.00 max | 2.0 3.0 | – |
| 317L | 0.030 max | 0.035 max | 0.75 max | 0.045 max | 18.0-20.0 | 11.0 14.0 | 2.00 max | 3.0 4.0 | – |
| 304 | 0.030 max | 0.08 max | 0.75 max | 0.045 max | 18.0-20.0 | 8.0 11.0 | 2.00 max | – | – |
| 310 S | 0.030 max | 0.08 max | 1.5 max | 0.045 max | 24.0-26.0 | 19.0 22.0 | 2.00 max | 3.0 4.0 | – |
| 347 H | 0.030 max | 0.04 0.10 | 0.75 max | 0.045 max | 17.0- 19.0 | 9.0 13.0 | 2.00 max | – | 10C(Cb+Ta)<1.10% |
| 321 | 0.030 max | 0.08 | 0.75 max | 0.045 max | 17.0-20.0 | 9.0 12.0 | 2.00 max | – | 5C 0.70% |
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Density | Elongation | Melting Point |
|---|---|---|---|---|---|
| SS 303 | Psi – 85,000 | Psi – 45,000 | 55% | 50 % | Rb 180 |
| SS 202 | 515 MPa | 275 MPa | 8.0 g/cm3 | 40 % | 1454 °C |
| SS 304 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 8.0 g/cm3 | 40% | 1400 °C |
| SS 304L | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 8.0 g/cm3 | 40% | 1400 °C |
| SS 316 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 8.0 g/cm3 | 35 % | 1454 °C |
| SS 316L | 485 Min | 170 Min. | 8.0 g/cm3 | 40 % | 1400 °C |
|
Drawn Bar |
Min. (mm) |
Max. (mm) |
Drawn Bar |
Min. (inch) |
Max. (inch) |
|---|---|---|---|---|---|
|
Rounds |
14 mm |
76 mm |
Rounds |
5/8” |
3” |
|
Flats Width :
Height : |
20 mm
5mm |
100 mm
40 mm |
Flats Width :
Height : |
3/4″
1/2″ |
4”
1-1/2” |
|
Squares |
14 mm |
65 mm |
Squares |
1/2″ |
2-1/2” |
|
Hexagonals |
12 mm |
60 mm |
Hexagonals |
5/8” |
2” |
|
Bright Bar Weight Calculation Formula |
|
|
Bright Bar Weight Formula
0.00623 X ( mm ) Diam X ( mm ) Diam = Weight / Meter
0.0019 X ( mm ) Diam X ( mm ) Diam = Weight / Feet |
Square Bar Weight Formula0.00788 X ( mm ) Diam X ( mm ) Diam = Weight / Meter
0.00240 X ( mm ) Diam X ( mm ) Diam = Weight / Feet
|
|
Brightagonal Bar Weight Forumla
0.00680 X ( mm ) Diam X ( mm ) Diam = Weight / Meter
0.002072 X ( mm ) Width X ( mm ) Diam = Weight / Feet |
Bright Bar Weight Forumla
0.00798 X ( mm ) Thickness X ( mm ) Width = Weight / Meter
0.00243 X ( mm ) Width X ( mm ) Thickness = Weight / Feet |
Yes, stainless steel bright bars and rods can be customized in size according to specific requirements. They are available in various diameters, lengths, and finishes to suit diverse industrial applications.
Yes, stainless steel bright bars are highly corrosion-resistant due to their chromium content, which forms a protective oxide layer, preventing rust and ensuring durability in various harsh environments and applications.
Yes, stainless steel bright bars can be welded. They are compatible with various welding methods, including TIG, MIG, and stick welding. However, proper precautions, such as controlling heat input, are needed to maintain corrosion resistance and prevent distortion.
Stainless Steel Bright Bars and Rods find extensive applications across numerous industries due to their strength, resistance to corrosion, and visual appeal. In the automotive industry, they are utilized for shafts, fasteners, and engine components. The construction and architecture sectors employ them for railings, supports, and decorative fittings. In machinery and manufacturing, they act as precision components in tools, equipment, and hardware. The marine and chemical industries depend on them for their ability to withstand rust and harsh conditions. Additionally, they are used in various applications where durability and reliability are essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
