Aung Metals, located in Naypyidaw, Myanmar, has built a solid reputation as a reliable manufacturer and supplier of top-notch metal products, particularly Aluminium 5052 Bars and Rods. With a focus on precision engineering, cutting-edge manufacturing methods, and strict quality control, this company delivers aluminium solutions that align with international standards. Aung Metals takes pride in ensuring that its Aluminium 5052 Bars and Rods offer outstanding corrosion resistance, strength, and formability, making them perfect for a wide range of industrial and structural uses. Catering to industries like marine, automotive, construction, and chemical processing, Aung Metals combines expertise with dependability, positioning itself as a go-to partner for clients in need of durable, high-performance aluminium components.
Aluminium 5052 Bars and Rods are primarily made of aluminium, with 2.5% magnesium and small amounts of chromium, which boost their corrosion resistance, strength, and weldability. These products showcase impressive mechanical properties, including a tensile strength of about 228–290 MPa, yield strength around 130–195 MPa, and elongation of 10–20%, depending on the temper. They also provide excellent fatigue resistance, high formability, and exceptional performance in marine and corrosive settings, making them ideal for applications that demand lightweight, durable, and reliable aluminium components.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

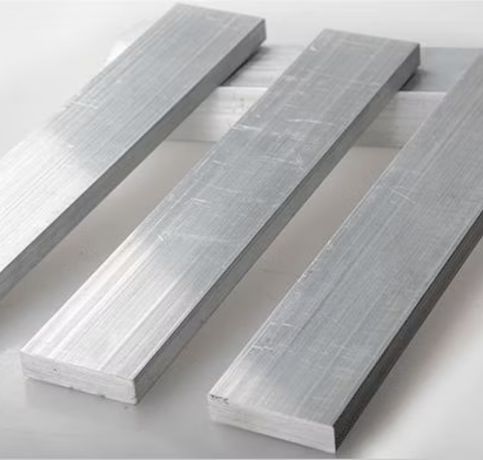

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Mg | Mn | Si | Cu | Fe | Cr | Zn | Ti | Cu | Other (Each) | Others (Total) | Al |
| 2.60 – 3.60 | 0.0 – 0.50 | 0.0 – 0.40 | 0.0 – 0.40 | 0.0 – 0.30 | 0.0 – 0.20 | 0.0 – 0.15 | 0.0 – 0.10 | 0.0 – 0.05 | 0.0 – 0.05 | 0.0 – 0.15 | Balance |
| Proof Stress | Tensile Strength | Elongation at 50 mm | Hardness Brinell |
| 80 Min MPa | 190 – 260MPa | 12 Min % | 52 HB |
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg2,5 | AG2,5C | 3.3523 | A95052 | AlMg2,5 | 5052 | AlMg2,5 |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 5052 bars can be welded. They offer good weldability using techniques like TIG or MIG welding, making them suitable for a variety of applications in marine and structural industries.
Consider proper handling to prevent surface damage, use appropriate welding techniques, ensure corrosion protection for harsh environments, choose compatible fasteners, and account for temperature fluctuations during installation for optimal performance.
Yes, Aluminium 5052 bars and rods can be used for structural applications due to their excellent corrosion resistance, high strength, and formability, making them suitable for marine, automotive, and industrial uses.
You’ll find Aluminium 5052 Bars and Rods commonly used in marine structures, automotive parts, chemical equipment, pressure vessels, and storage tanks, thanks to their remarkable corrosion resistance and moderate strength. They’re also utilized in pipelines, architectural projects, and transportation equipment that face tough environmental conditions. The alloy’s unique blend of strength, lightweight nature, and durability makes it a perfect choice for industries that require long-lasting, dependable aluminium components capable of handling challenging operational and structural demands.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aung Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Naypyidaw, Myanmar
