Aung Metals, located in Naypyidaw, Myanmar, has built a solid reputation as a manufacturer and supplier of top-notch metal products, particularly Aluminium 5754 Bars and Rods. The company stands out for its cutting-edge production techniques, rigorous quality control, and dedication to providing materials that align with international standards. The Aluminium 5754 Bars and Rods from Aung Metals are known for their impressive corrosion resistance, strength, and formability, making them ideal for a variety of industrial applications. Catering to industries like marine, automotive, construction, and chemical processing, Aung Metals guarantees reliable performance, durability, and precision in every product, solidifying its status as a trusted provider of aluminium solutions.
These Aluminium 5754 Bars and Rods are primarily made from an aluminium alloy mixed with magnesium, typically containing 2.6–3.6% magnesium, which boosts their strength, corrosion resistance, and weldability. They showcase mechanical properties such as tensile strength ranging from 190–300 MPa, yield strength between 80–260 MPa, and elongation of 12–25%, depending on the temper. With excellent resistance to seawater and industrial chemicals, along with good cold working characteristics, these bars and rods are perfect for structural and high-performance applications that demand durability and stability.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

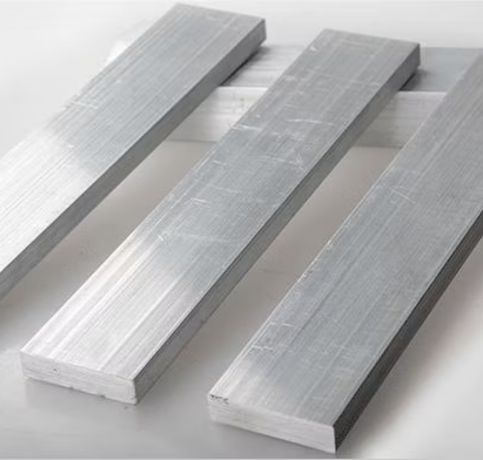

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Mg | Mn | Si | Cu | Fe | Cr | Zn | Ti | Cu | Other (Each) | Others (Total) | Al |
| 2.60 – 3.60 | 0.0 – 0.50 | 0.0 – 0.40 | 0.0 – 0.40 | 0.0 – 0.30 | 0.0 – 0.20 | 0.0 – 0.15 | 0.0 – 0.10 | 0.0 – 0.05 | 0.0 – 0.05 | 0.0 – 0.15 | Balance |
| Proof Stress | Tensile Strength | Elongation at 50 mm | Hardness Brinell |
| 80 Min MPa | 190 – 260MPa | 12 Min % | 52 HB |
| UNS | EN | DIN | ISO | USA | WNR |
| A95754 | EN AW-5754 | AlMg3 | AlMg3 | AA5754 | 3.3535 |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 5754 bars and rods are suitable for structural applications due to their excellent strength, corrosion resistance, and formability, making them ideal for use in marine, automotive, and architectural structures.
Yes, Aluminium 5754 bars can be welded using various techniques, such as MIG and TIG welding. However, proper welding procedures and equipment are essential to maintain its strength and integrity.
Aluminium 5754 bars are typically sized based on diameter and length. The diameter can range from a few millimeters to several inches, while the length is often available in standard lengths, typically up to 6 meters. Custom sizes can also be ordered based on specific requirements. The bars are available in various shapes, including round, square, and hexagonal, to suit different applications.
Aluminium 5754 Bars and Rods find extensive use in marine structures, shipbuilding, automotive panels, welded assemblies, pressure vessels, and storage tanks, thanks to their outstanding corrosion resistance and strength. They are also employed in architectural structures, railway components, and chemical handling equipment, where lightweight materials with a long service life are essential. Their remarkable weldability and formability make them suitable for projects that require shaping and fabrication without sacrificing durability. In summary, Aluminium 5754 Bars and Rods are the go-to choice for environments exposed to moisture, chemicals, and mechanical stress, ensuring dependable and long-lasting performance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
