Aung Metals, located in Naypyidaw, Myanmar, stands out as a top manufacturer and supplier of high-quality metal products, particularly Aluminium 5083 Bars and Rods. The company prides itself on its state-of-the-art production facilities, talented engineering team, and unwavering commitment to international quality standards. The Aluminium 5083 Bars and Rods from Aung Metals are renowned for their impressive strength, resistance to corrosion, and durability, making them ideal for tough and marine environments. Catering to sectors like shipbuilding, automotive, aerospace, marine engineering, and heavy machinery, Aung Metals delivers dependable and high-performance aluminium solutions tailored to meet the rigorous demands of both industrial and structural applications.
These Aluminium 5083 Bars and Rods are made from an aluminium alloy that contains about 4.0–4.9% magnesium, along with trace amounts of chromium and manganese, which boost their corrosion resistance and strength. They showcase mechanical properties such as a tensile strength ranging from 275–350 MPa, yield strength between 125–260 MPa, and elongation of 10–20%, depending on the temper. This alloy is not only easy to weld but also offers great fatigue resistance and stability in extreme conditions, making it perfect for applications that require both durability and lightweight performance.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

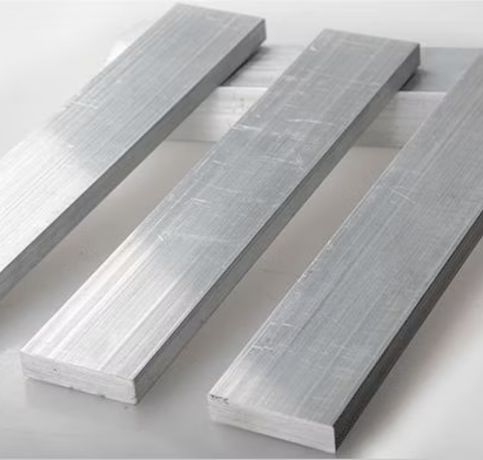

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Weight% | Al | Si | Fe | Cu | Mn | Cr | Mg | Ti | Zn | Other Each | Others Total |
| 5083 | Bal | 0.40 max | 0.40 max | 0.10 max | 0.40 / 1.0 | 0.05 / 0.25 | 4.0 / 4.90 | 0.15 max | 0.25 max | 0.05 max | 0.15 max |
| Properties | Proof Stress | Tensile Strength | Hardness Brinell | Elongation |
| Metric | 125 Min MPa | 275 – 350 MPa | 75 HB | 12 Min % |
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4,5Mn0,7 | AG4,5MC | 3.3547 | A95083 | AlMg4,5Mn0,7 | 5083 | AlMg4,5Mn |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 5083 bars are fully recyclable. Recycling preserves the material's properties, reduces energy consumption, and minimizes environmental impact, making it an eco-friendly choice for sustainable manufacturing.
To maintain Aluminium 5083 bars, regularly clean them with mild detergent and water to prevent corrosion. Avoid abrasive materials, and apply protective coatings if exposed to harsh environments for enhanced durability.
When installing Aluminium 5083 bars and rods, consider proper welding techniques, corrosion protection, accurate measurements, compatibility with other materials, and ensuring proper handling to avoid surface damage or distortion.
Aluminium 5083 Bars and Rods find extensive use in marine and offshore settings, including ship hulls, deck structures, and underwater equipment, thanks to their exceptional resistance to seawater corrosion. They’re also utilized in automotive panels, aerospace structural components, pressure vessels, fuel tanks, and welded structures that endure high stress. Furthermore, these bars and rods are employed in chemical processing equipment and architectural frameworks. The blend of high strength, lightweight nature, and outstanding environmental resistance makes Aluminium 5083 a go-to material for challenging conditions, ensuring a long service life and reliable performance across a variety of industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aung Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Naypyidaw, Myanmar
